PhotonSafe Laser Safety Barriers
Movable laser protection Walls - perfect for laser welding, laser cleaning, laser cladding, ..
Constructed of the patented panel PhotonSafe Laser Shield 4005™ and aluminum frames, Our protection walls are designed for the protection of kilowatt-level laser, especially for high power laser welding and lser cleaning, laser processing workshop and laser device, with its characteristics of high level protection and flexibility. The barriers Laser Knight, when they first came out in the year of 2019, successfully get patent for an invention in 2022. They are the first laser protective barriers with independent intellectual property rights.
As the rapid growth and wide application of high power laser, PhotonSafe has deeply researched and developed its hit product PhotonSafe Protection screens series, and now launch the renewed barriers to meet laser safety demand of high power laser areas. The upgrading barriers are tested by a third party of authority, according to standards IEC 60825, GB/T 7247 and EN60825-1. In addition, conformity with CMA and CNAS, accreditation system which have been integrated to international mutual recognition, PhotonSafe barriers are compliant with CE standards, and meet the threshold of European market. Furthermore in conformity with many national defense recognitions, PhotonSafe barriers are widely applied to laser processing, military industrial enterprises, the fields of semiconductor and medical facilities.

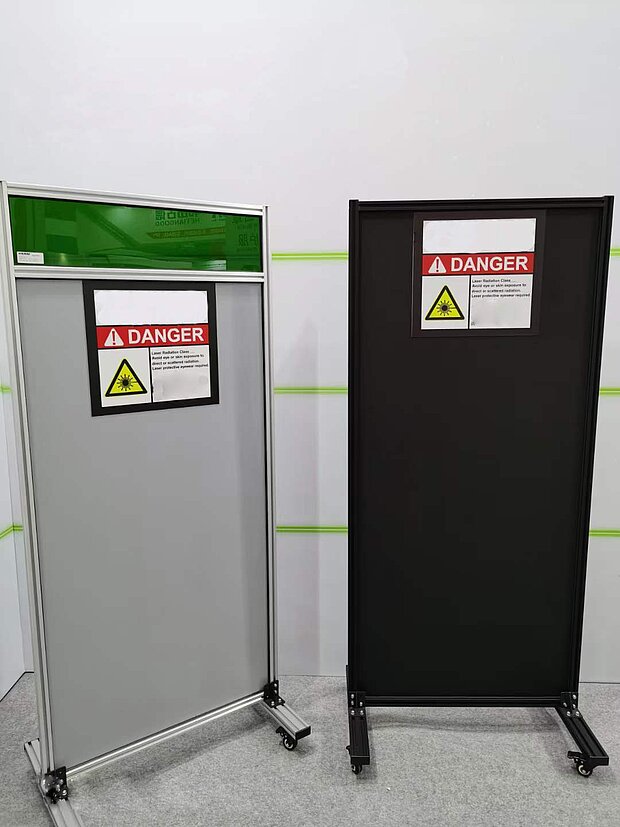

Standard movable walls on wheels

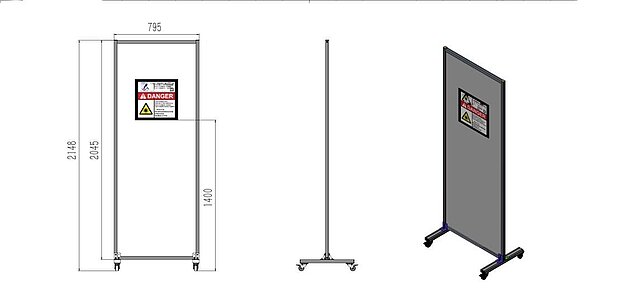

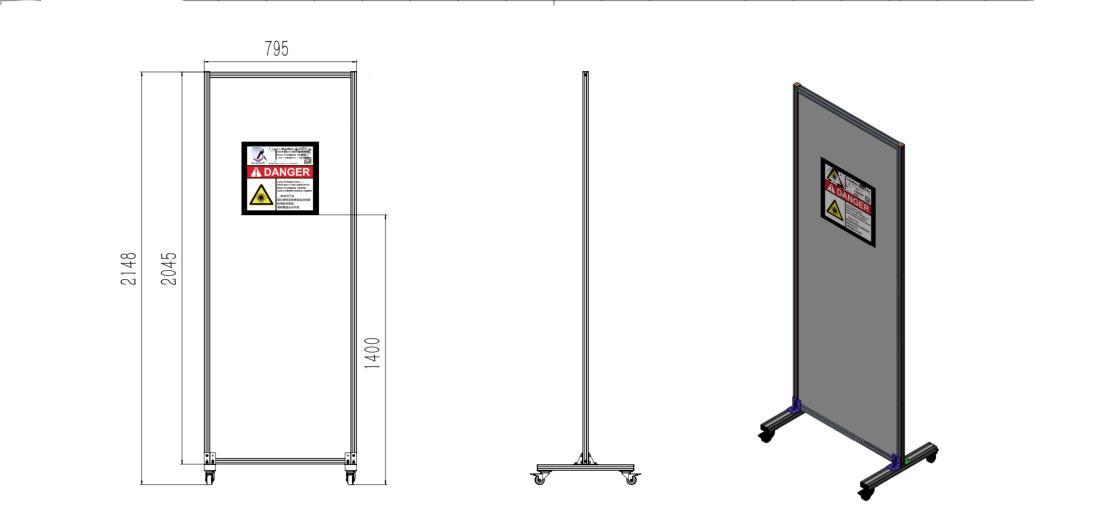

laser protection walls 800 and 1500 mmm width
Facilities using lasers which are Class 4 under service conditions may require free-standing screens to allow other work to continue safely in the same room during service. Also, where a production line uses a Class 4 laser for cutting and/or welding, it is impractical for the whole facility to observe Class 4 safety regulations. However, using complete enclosures can transform the laser facility into a Class 1 system.
Lasermach provide a range of free-standing laser-blocking screens which are designed for use as passive guards to enclose areas where Class 3B or Class 4 lasers are in use either to protect against accidental exposure to the laser beam or for long term blocking of laser radiation at lower power densities.
All Lasermach laser-blocking screens are CE marked and certified to BS EN IEC 60825-4 Safety of Laser Products Part 4: Laser Guards.

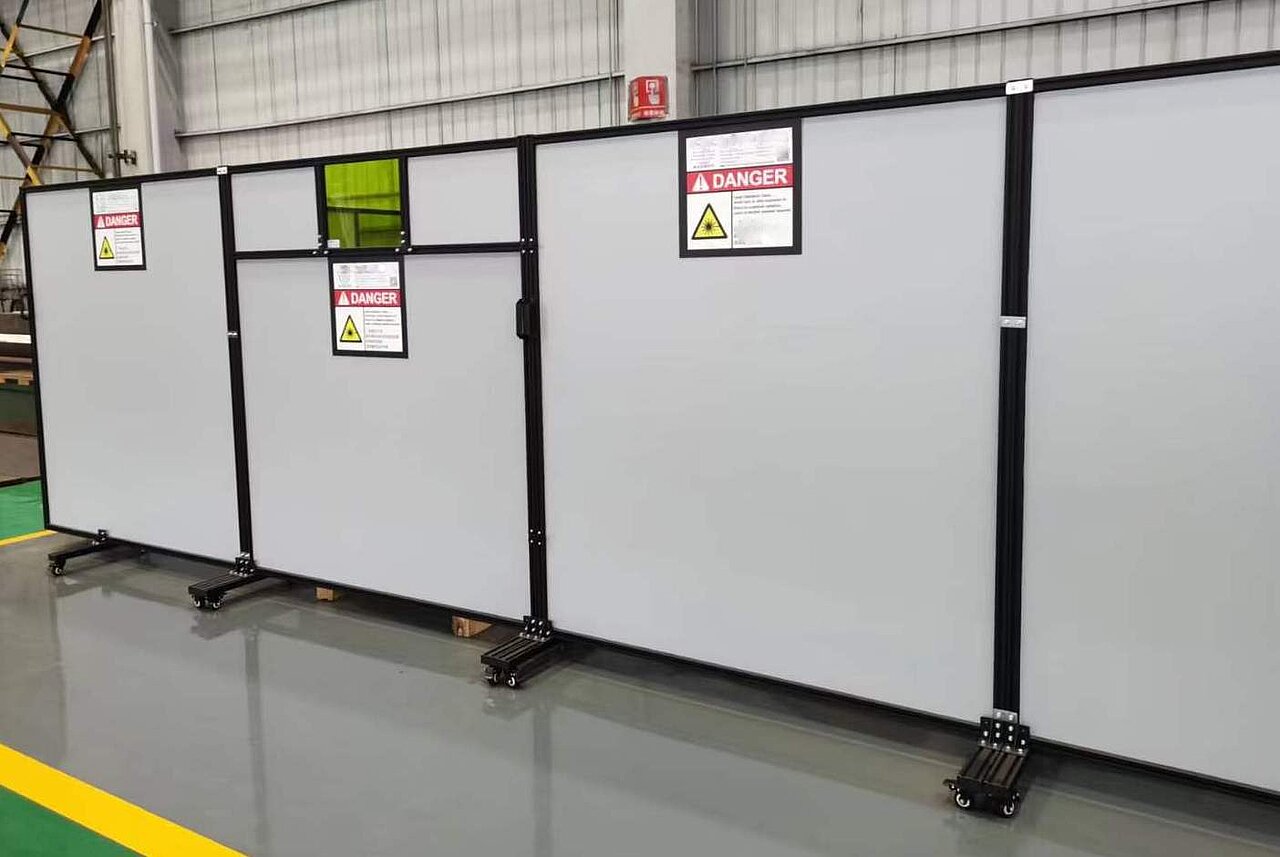

All of the screens are portable and can be used as simple temporary installations or can be used on a semi-permanent or permanent basis as required.

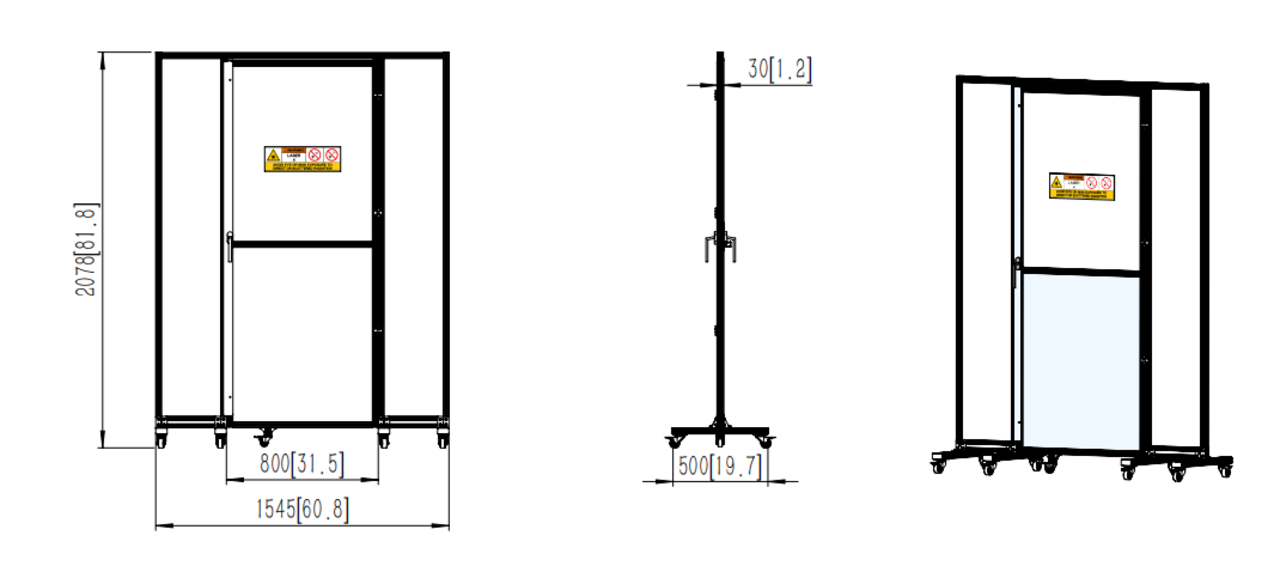

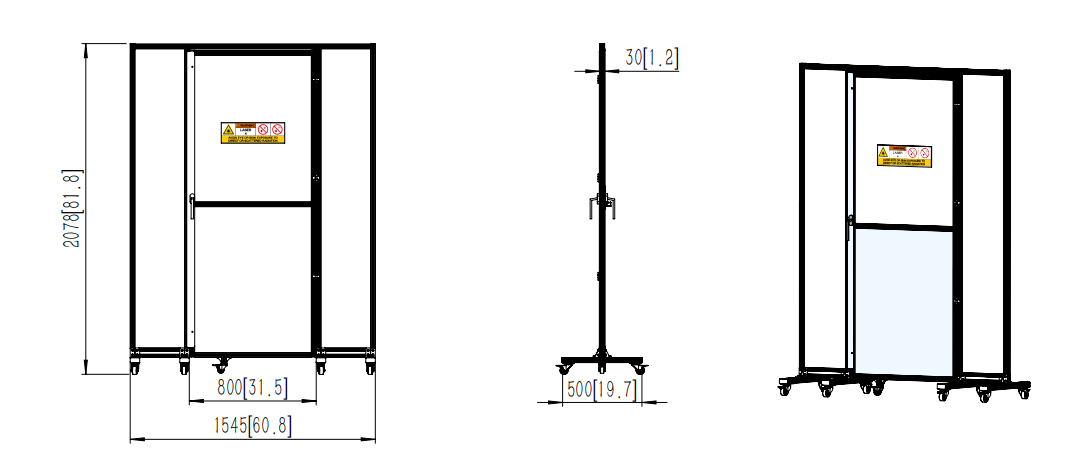

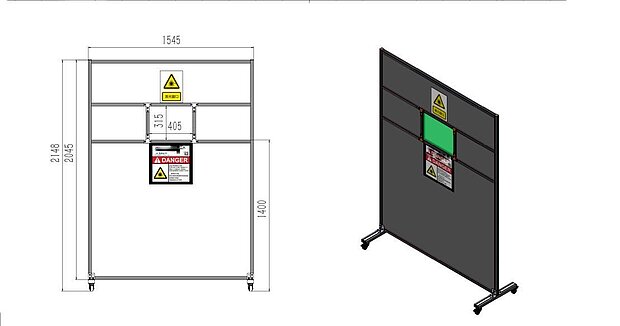

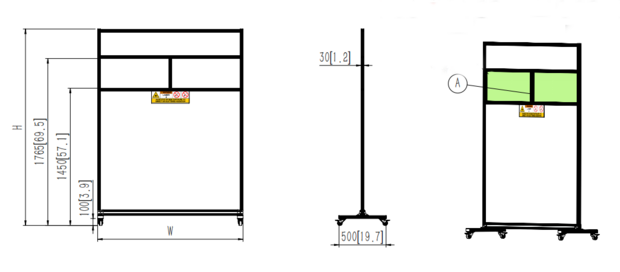

PhotonSafe Moveble Laser protection walls 800 and 1500 mm width, with window
With Central window or full width window
Laser Blocking Screens
Safety Screens
To protect personnel from Welding lasers it is imperative to have comprehensive laser safety protection in place. Laser radiation must be prevented from escaping from manufacturing zones using certified equipment.
Using Class 4 Lasers under service conditions may require free-standing screens to allow other work to continue safely in the same room during service. Also, where a production line uses a Class 4 laser for cutting and welding, it is impractical for the whole facility to observe Class 4 safety regulations. However, using complete enclosures respecting BS EN IEC 60825-4 norm can transform the laser facility into a Class 1 system.
Lasermach provide a range of free-standing laser-blocking screens which are designed for use as passive guards to enclose areas where Class 4 lasers are in use either to protect against accidental exposure to the laser beam or for long term blocking of laser radiation at lower power densities. All Lasermach laser-blocking screens are CE marked and certified to BS EN IEC 60825-4 Safety of Laser Products Part 4: Laser Guards. All of the screens are portable and can be used as simple temporary installations or can be used on a semi-permanent or permanent basis as required.
OUR LASER PROTECTIVE WALL
INNOVATIVE PATENTED PROTECTIVE WALL SYSTEM

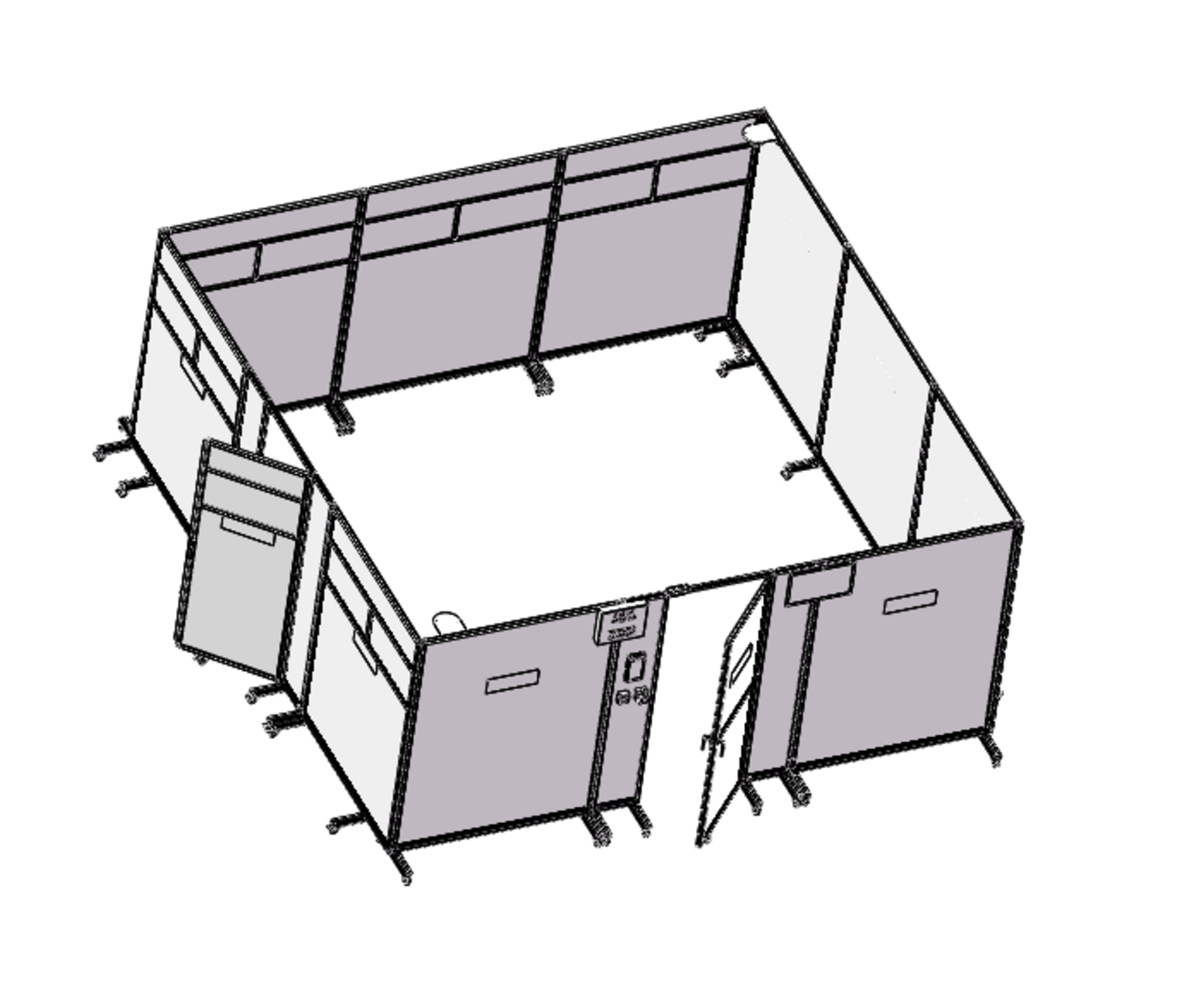

FOR LASER PROTECTIVE CABINS
Our patented PhotonSafe® product is an innovative material for the manufacture of passiv laser protection walls or complete laser protection cabins for higher laser outputs up to 6 kW.

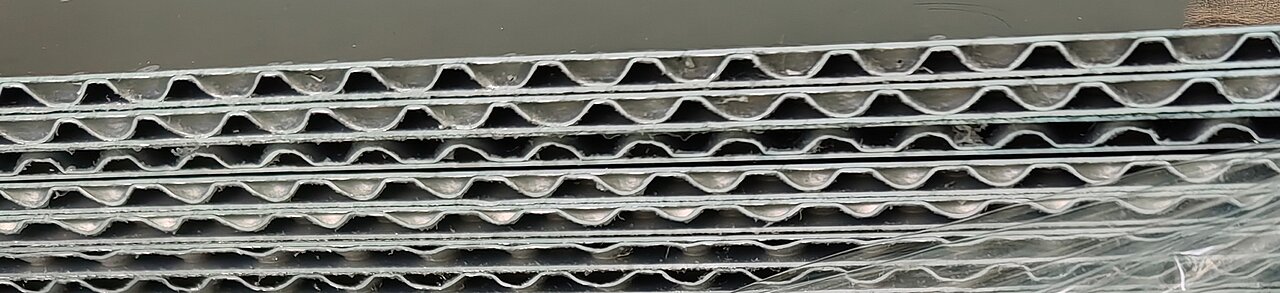

The material itself is a composite material consisting of several metal walls and extremely strong cross-linked frustums.
The material is characterised by low grammage, high inherent stiffness and very high resistance to laser radiation (satisfies a permissible exposure limit (PEL) of 158 MW/m2 according to the current test standard DIN/EN 60 825-4).
The PhotonSafe® Laser protection Wall meets these requirements for the wavelength range of 850-1100nm and thus covers diode and solid-state lasers (disk and fibre lasers).
This makes it far superior to all conventional passive protective wall systems currently available on the market. The protective housings designed by us always meet the requirements of laser class 1.
We supply you with this innovative, cost-effective material as sheet material, as a blank or as a complete laser cabin, equipped according to your specification, with or without final assembly. We look forward to your inquiries.
