Auto Darkening Laser Welding helmet
ALL-AROUND SAFETY AGAINST LASER EXPOSURE
The PhotonSafe Tecmen 100LW Laser Welding Helmet is specifically designed for laser welding/cleaning/cutting application to protect users. The variable shade lens provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Meanwhile, it offers protection against UV/IR/blue light.
The Fiber Laser Welding Helmet PhotonSafe Tecmen 100LW is a cutting-edge protective head gear designed for welding professionals. Equipped with a special laser shielding filter system, with multiple layers of protection, this helmet offers superior protection, visibility and precision during welding tasks. Approved for fiber laser welding and cleaning. Variable shade auto dimming as standard. Suits the most powerful hand held laser welders, up to 3kW.
PhotonSafe® Tecmen-100LW Laser Welding helmet
Superior laser protection with adjustable shade number: Key features
Effective laser protection
Designed to meet EN207 OD10+@1064nm, the PhotonSafe® Tecmen-100LW provides full protection to prevent eye burns, retinal damage and other tissue damage.
Advanced Headgear design
Viewing angle and distance adjustable. Offers a better weight distribution for maximum comfortable feelings.
Ultra-clear vision
Experience exceptional clarity and details with PhotonSafe's Tecmen light state 2.0 variable shade laser lens. Superior vision quality leads to superior work quality.

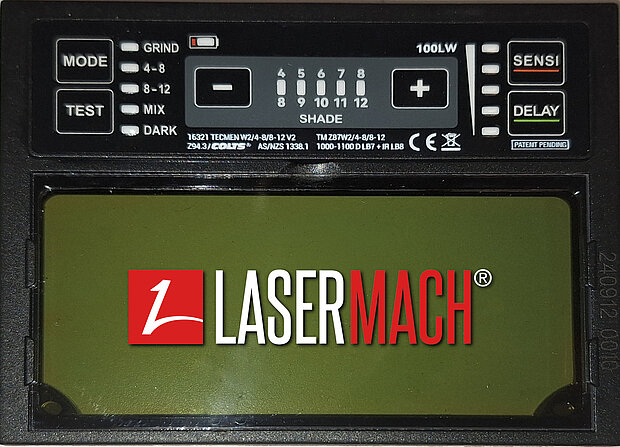

Smart adjustment
Shade number, delay and sensitivity all easily adjustable using our user-friendly panel with LED indicators.
The safest protection on the market of laser welding helmets
With High reflective ultra light Aluminium face protection shell: resist 28 times longer to laser beam than normal helmets
The best value and the most safe laser welding helmet on the market, with comfortable padded head gear and fully meeting (EU) 2016/425, EN ISO 16321-1:2022, EN ISO 16321-2:2021 and the stringent EN207 laser eyewear standard up to 3kW laser power. Suits also laser cleaning, which requires auto dimming.
Its special multi stage infrared and UV filter with variable auto dimming is unmatched on the market, along with its shielding made from Special heat resistant polyamide, high reflective Aluminium, ABS and Polycarbonate.
PhotonSafe Tecmen-100LW’s filter and shield will much less be damaged by multiple laser strikes, due to its ultra-light frontal metal protection shield where other far more expensive helmets may require replacement after only one high intensity laser strike. This Multi layered defence system meets EN207 and OSHA requirements for laser welding.
For Full eye safety laser protection glasses should (must) be worn under this helmet. This provides safe protection in the case of a user forget to flip his helmet down.

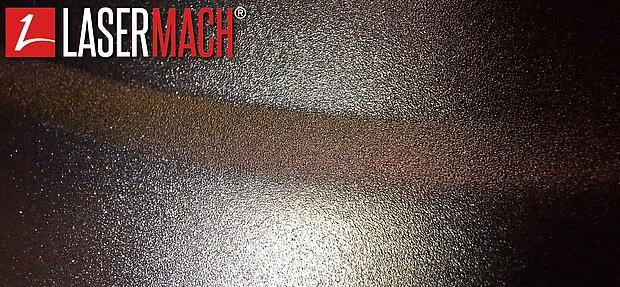

PATENTED HIGH DISPERSION REFLECTIVE DUR_ALUMINIUM SHIELD
800% MORE LASER RESISTANCE THAN NORMAL LASER HELMETS
The safest protection on the market of laser welding helmets
With build-in diffractive high reflective ultra light Aluminium face protection shell

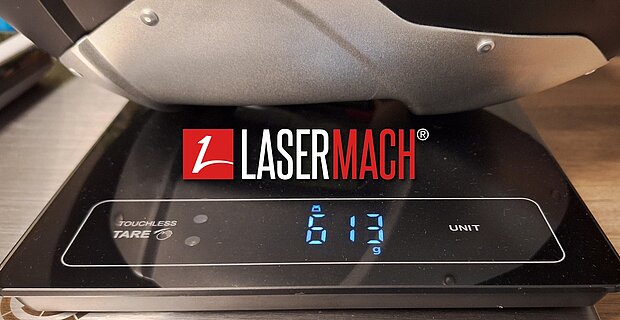

Ultra low weight auto-darkening laser welding helmet with metal shield protection:
ONLY 613 gram
Most comfortable and lightest protective laser welding helmet with metal face shield
Light as a feather and well-balanced
For maximum comfort and perfect ergonomics.
High speed reactive auto darkening face screen
Shade level 4 - 12
Wide range of protection levels for many applications.
Protection level 4-12
Shade level 4 - 12
Superior comfort for laser welding protection
Multi adjustable fitting form and positions
Specifications of our auto darkening laser welding helmet
Auto Darkening Function (ADF) Model PhotonSafe Tecmen-100LW
Auto Darkening Function (ADF) Model PhotonSafe Tecmen-100LW | |
Viewing Area | 96x46.5mm |
Optical Class | 1 / 1 / 1 / 2 |
Number of Sensors | 2 |
Power On/Off | Automatic On/Off |
Dark State | 4-8/8-12 |
Light State | Shade 2.0 |
Switching Speed | 1/25,000s, from Light to Dark |
Special Modes | GRIND / CUT / MIX / DARK |
Sensitivity Control | Low-High, LED and Button Control |
Delay | 0.1-1.0s, LED and Button Control |
UV/IR Protection | Up to Shade DIN 16 at all times |
Operating Temp | -10℃ to 55℃（14℉ to 131℉） |
Storing Temp | -20℃ to 70℃（-4℉ to 158℉） |
Helmet Material | High Impact Resistant Nylon |
Laser Protection | 1000-1100 D LB7+ IR LB8 |
Optical Density(OD) | OD 7+@1000-1100nm, OD 10+@1064nm |
Approvals | CE（EN 207, EN ISO 16321） |
The PhotonSafe Tec-100LW model is the premium version of our helmet and offers the best view without colour distortion, thanks to a coated interference filter. This high-end solution guarantees unparalleled clarity and protection, ideal for demanding laser welding work where precision and safety are top priorities. Perfect for professionals who demand only the best. The very best value and the most safe laser welding helmet on the market, with comfortable padded head gear with maximum wearing comfort, and fully meeting all safety standards like (EU) 2016/425, EN ISO 16321-1:2022, EN ISO 16321-2:2021 and the stringent EN207 laser eye-wear standard up to 3kW laser power. Suits also laser cleaning, which requires auto dimming.
