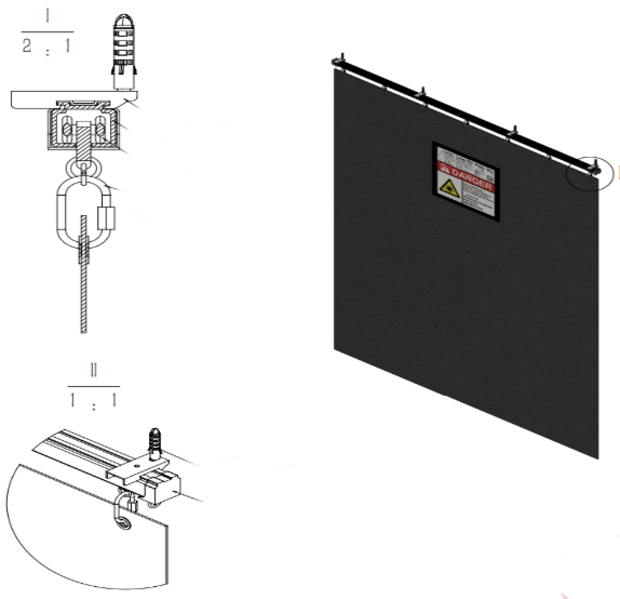

Free Hanging Laser Welding curtain 150 cm wide standard

Laser Protective Curtains according to EN 60825-4 (Laser Welding Protection)

==>NOT according EN11254 (Laser Labo Protection at max 100 Watt

Protection Level: 543 W/cm2 - 1070nm - ∅5 mm - T= 100 sec

PhotonSafe Laser Protection welding curtains have a standard width of 150 cm, are provided with:

• seam all around
• Thickness 0,40 mm.
• All standard welding curtains are supplied incl.  steel suspension rings.
• Approved in accordance with ISO EN 25980 and EN 60825-4
• Standard width 150 cm
• Fully seamed all-around
• 7 eyelets on one side measuring 150cm
• Snap-fasteners on both sides
• Including 7 free steel suspension rings
• Standard Heights 200 - 250 - 270 cm
• Other heights on demand
• including track kit possible
• Safety window can optional be installed

The welding curtains are for visual protection use and although they are flame retardant, they are not suitable for use as a welding blanket and/or as protection against welding sparks.  The material is not intended to replace a welding window but to be used to protect bystanders from harmful rays in the welding area.
